Step 2: Write the Channel Information into the APK Package with EdgeOne Edge Functions

通过 EdgeOne 边缘函数,我们可以动态地将渠道信息写入到 APK 包内。用户只需访问与边缘函数绑定的域名并进行触发配置,就可以触发该边缘函数,从而实现 APK 的动态打包和加速分发。

步骤1:添加用于加速分发的加速域名

请根据 添加加速域名 指引添加加速域名,例如:www.example.com 且源站配置为 Android APK 母包所在的对象存储 COS 自定义域名,详情可参见 存储桶切换自定义域名 。配置如下图所示:

说明:
该域名将用于访问下载 APK 安装包。

步骤2:创建用于触发渠道信息写入的边缘函数

1. 根据 函数管理 指引创建一个边缘函数,将如下代码复制到函数代码内。
const CUSTOM_BLOCK_VALUE_LENGTH = 10240;
const APK_SIGNING_BLOCK_MAGIC_LENGTH = 16;
const APK_SIGNING_BLOCK_OFFSET_LENGTH = 8;

const APK_COMMENT_LENGTH = 512;

class EdgePack {
totalSize;
signVersion;
centralDirectoryOffset;
customBlockValueStart;
customBlockValueEnd;
rangeRelativeOffset;
customInfo;

constructor() {
this.totalSize = null;
this.signVersion = null;
this.centralDirectoryOffset = null;
this.customBlockValueStart = null;
this.customBlockValueEnd = null;
this.rangeRelativeOffset = null;
this.customInfo = null;
}

async handle(event) {
const { request } = event;

const headers = new Headers(request.headers);

const modifiedRequest = new Request(request, { headers });

if (!this.checkRequest(modifiedRequest)) {
return;
}

let response = null;
try {
const headRequest = new Request(modifiedRequest.url, {
method: 'HEAD',
headers: modifiedRequest.headers,
});
response = await fetch(headRequest);
} catch (err) {
const error = {
code: 'FETCH_ORIGIN_ERROR',
message: err?.message,
};
response = new Response(JSON.stringify(error), {
status: 590,
});
}

if (!this.checkResponse(response)) {
return event.respondWith(response);
}

response.headers.set('Cache-Control', 'max-age=0');

const streamResponse = new Response(
await this.combineStreams(modifiedRequest),
response
);

event.respondWith(streamResponse);
}

getRelativeOffset(response) {
const start = this.customBlockValueStart;
const end = this.customBlockValueEnd;

const range = response.headers.get('Content-Range');

if (!range) return start;

const match = range.match(/bytes\s*(\d*)-(\d*)/i);
if (!match || match?.length < 2) {
return start;
}

if (+match[2] < start || +match[1] > end) {
return null;
}

return start - +match[1];
}

checkRequest(request) {
if (request.method !== 'GET') {
return false;
}

if (request.headers.has('Range')) {
return false;
}

const { pathname, searchParams } = new URL(request.url);

const comment = searchParams?.get('comment');

if (!pathname.endsWith('.apk') || !comment) {
return false;
}

this.customInfo = comment;
return true;
}

checkResponse(response) {
if (response.status !== 200 && response.status !== 206) {
return false;
}

const contentLength = response.headers.get('Content-Length');

if (response.body === null || contentLength === null) {
return false;
}

this.totalSize = Number(contentLength);

const cosOffsetHeader = response.headers.get('x-cos-meta-edgepack-offset');
const cosTypeHeader = response.headers.get('x-cos-meta-edgepack-type');

if (!cosOffsetHeader || !cosTypeHeader) {
return false;
}

this.signVersion = cosTypeHeader;
this.centralDirectoryOffset = Number(cosOffsetHeader);

if (this.signVersion === 'v1') {
this.customBlockValueStart = this.totalSize - APK_COMMENT_LENGTH;
this.customBlockValueEnd = this.totalSize;
} else {
this.customBlockValueStart =
this.centralDirectoryOffset -
CUSTOM_BLOCK_VALUE_LENGTH -
APK_SIGNING_BLOCK_MAGIC_LENGTH -
APK_SIGNING_BLOCK_OFFSET_LENGTH;
this.customBlockValueEnd = this.centralDirectoryOffset;
}

this.rangeRelativeOffset = this.getRelativeOffset(response);

if (this.rangeRelativeOffset === null) {
return false;
}

return true;
}

async combineStreams(request) {
const { readable, writable } = new FixedLengthStream(this.totalSize);
this.handleStream(request, writable);
return readable;
}

async handleStream(request, writable) {
const comment = this.customInfo;
const relativeOffset = this.rangeRelativeOffset;

const encoder = new TextEncoder();
const section = encoder.encode(comment);

try {
const apkHeader = await this.apkHeaderStream(request);

try {
await apkHeader.pipeTo(writable, {
preventClose: true,
});
} catch (e) {
console.error('HEADER_STREAM_ERROR: ', e);
}

// 返回的是Blob数据
const apkBody = await this.apkBodyStream(
request,
section,
relativeOffset
);

const apkBodyStream = apkBody.stream();

try {
await apkBodyStream.pipeTo(writable, {
preventClose: true,
});
} catch (e) {
console.error('BODY_STREAM_ERROR: ', e);
}

const apkTail = await this.apkTailStream(request);

try {
await apkTail.pipeTo(writable, {
preventClose: true,
});
} catch (e) {
console.error('TAIL_STREAM_ERROR: ', e);
}
} catch (err) {
console.error('HANDLE_STREAM_ERROR: ', err);
} finally {
let writer = writable.getWriter();
writer.close();
writer.releaseLock();
}
}

async apkHeaderStream(request) {
const headers = new Headers(request.headers);
headers.set('Range', `bytes=0-${this.customBlockValueStart - 1}`);

// 获取签名块之前的部分
const headResponse = await fetch(request, {
headers: headers,
});

return headResponse.body;
}

async apkBodyStream(request, section = null, relativeOffset = 0) {
const headers = new Headers(request.headers);
headers.set(
'Range',
`bytes=${this.customBlockValueStart}-${this.customBlockValueEnd - 1}`
);

const middleResponse = await fetch(request, {
headers: headers,
});

const reader = middleResponse.body.getReader();

let outputBuffers = [];
try {
let handledBytes = this.customBlockValueStart;
while (true) {
const result = await reader.read();

if (result.done) {
console.log('APK_BODY_STREAM_DONE');
break;
}

const startByteOffset = handledBytes;
const buffer = result.value;
handledBytes += buffer.byteLength;

const min = Math.max(startByteOffset, relativeOffset);
const max = Math.min(relativeOffset + section.byteLength, handledBytes);

if (min < max) {
const bufferStart = min - startByteOffset;
const sectionStart = min - relativeOffset;
const sectionEnd = max - relativeOffset;

const replacement = section.subarray(sectionStart, sectionEnd);

new Uint8Array(buffer).set(replacement, bufferStart);
}

outputBuffers.push(buffer);
}
} catch (err) {
console.error('APK_BODY_STREAM_ERROR: ', err);
}
return new Blob(outputBuffers);
}

async apkTailStream(request) {
const headers = new Headers(request.headers);
headers.set(
'Range',
`bytes=${this.customBlockValueEnd}-${this.totalSize - 1}`
);

const tailResponse = await fetch(request, {
headers: headers,
});

return tailResponse.body;
}
}

async function handleEvent(event) {
const edgepack = new EdgePack();
await edgepack.handle(event);
}

addEventListener('fetch', handleEvent);
2. 完成部署函数后,根据 函数管理 指引配置触发规则,其 HOST 值为 步骤1 创建的加速域名,如下所示:

3. 单击确定,即可完成触发规则的创建。用户访问域名 www.example.com 且文件后缀为.apk时,即可触发边缘函数进行动态打包。

步骤3:验证 EdgeOne 边缘函数是否已将渠道信息写入到 Android APK 包

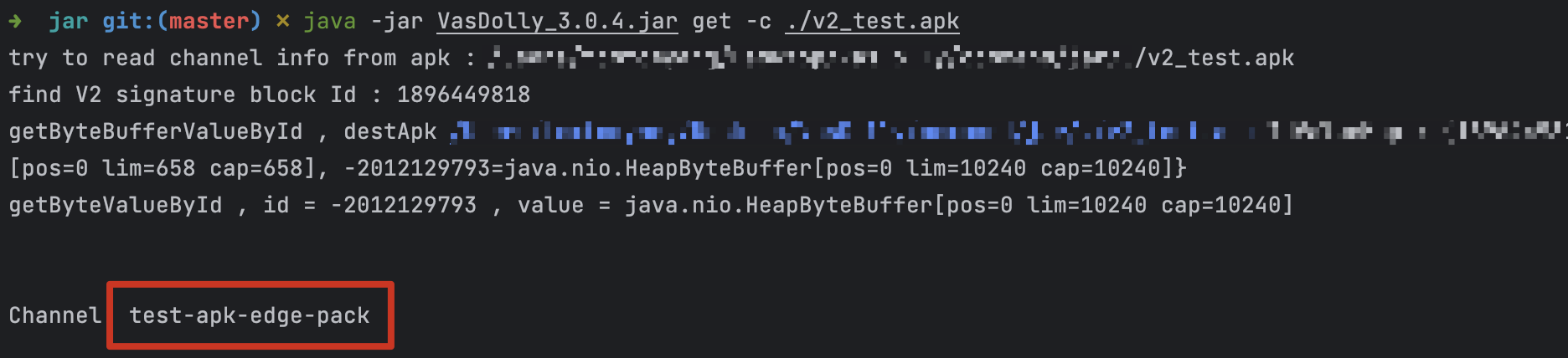

在浏览器中输入带有渠道信息的 URL,例如: http://www.example.com/v2_src.apk?comment=test 即可触发边缘函数,动态地将渠道信息注入到指定位置,其中 comment 为您在 创建用于触发渠道信息写入的边缘函数 中定义的渠道参数。以 v2-VasDolly 方式为例,可以使用 VasDolly 多渠道打包工具来读取动态注入的渠道信息:
